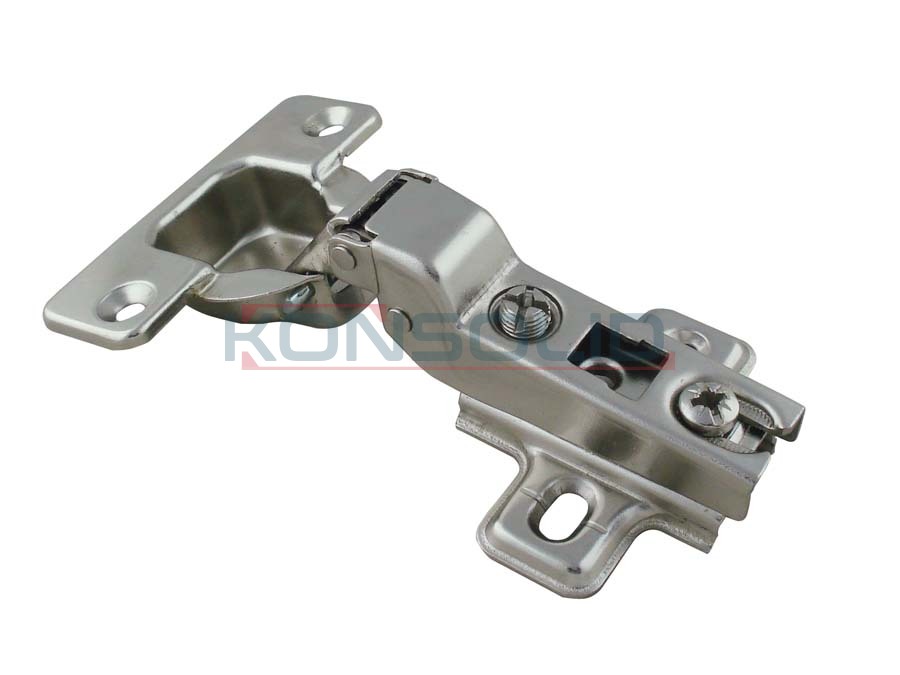

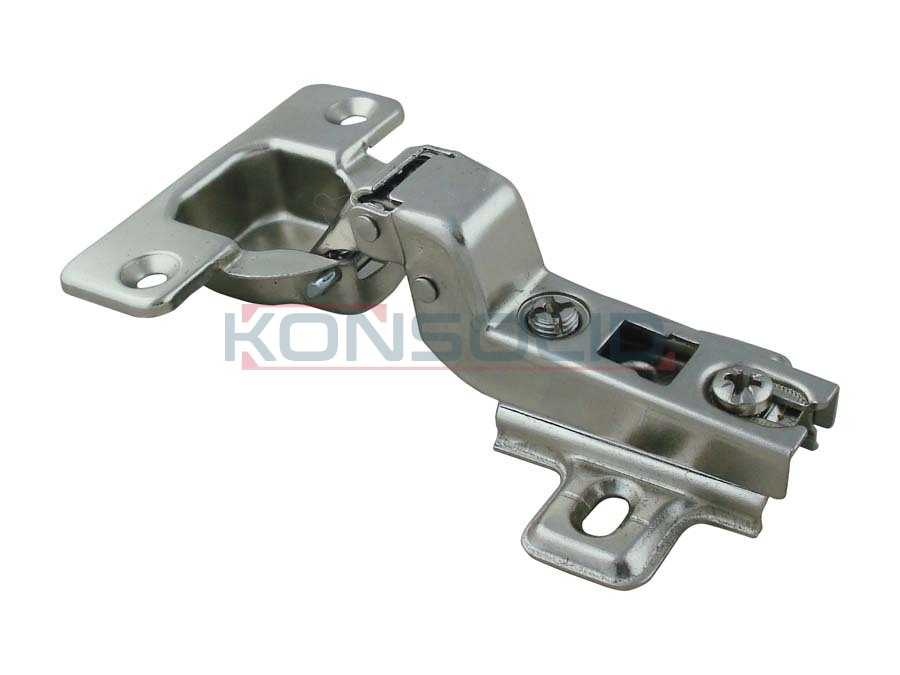

KSLA-001 Furniture hinge, slide-on

Product material: steel
Product finish: nickel plated

SKU: KSLA-001 Categories: 01 - Hinges, for wooden doors

Variations	Cap depth	Crank	Plate height	Plate type	Spring	Weight
KSLA-001-52-48A2 full/48/H2, 52+/ 2g Cap depth: 11.5 Crank: full overlay Plate height: H=2 Plate type: for chipboard screws Spring: yes Weight: 52 gr± 2	11.5	full overlay	H=2	for chipboard screws	yes	52 gr± 2	Inquiry In Inquirylist In Inquirylist
KSLA-001-50-48A2 full /48/H2, 50+/ 2g Cap depth: 11.5 Crank: full overlay Plate height: H=2 Plate type: for chipboard screws Spring: yes Weight: 50 gr± 2	11.5	full overlay	H=2	for chipboard screws	yes	50 gr± 2	Inquiry In Inquirylist In Inquirylist
KSLA-001-58-48A2 full/48/H2, 58+/ 2g Cap depth: 11.5 Crank: full overlay Plate height: H=2 Plate type: for chipboard screws Spring: yes Weight: 57 gr-59	11.5	full overlay	H=2	for chipboard screws	yes	57 gr-59	Inquiry In Inquirylist In Inquirylist
KSLA-001-48-48A2 full /48/H2, 48+/ 1g	-	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist
KSLA-001-58-48A2-EU full/48/H2, 58+/ 2g Cap depth: 11.5 Crank: full overlay Plate height: H=2 Plate type: for euroscrews Spring: yes Weight: 58 gr± 2	11.5	full overlay	H=2	for euroscrews	yes	58 gr± 2	Inquiry In Inquirylist In Inquirylist
KSLA-001-58-48B2-EU half/48/H2, 58+/ 2	-	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist
KSLA-001-58-48C2-EU insert/48/H2, 58+/ 2 Cap depth: 11.5 Crank: inset Plate height: H=2 Plate type: for euroscrews Spring: yes Weight: 58 gr± 2	11.5	inset	H=2	for euroscrews	yes	58 gr± 2	Inquiry In Inquirylist In Inquirylist
KSLA-001-60-48A0 full/52/H0, 60+/ 2g Cap depth: 11.5 Crank: full overlay Plate height: H=0 Plate type: for chipboard screws Spring: yes Weight: 60 gr± 2	11.5	full overlay	H=0	for chipboard screws	yes	60 gr± 2	Inquiry In Inquirylist In Inquirylist
KSLA-001-60-48A0-EU full/48/H0, 60+/ 2g Cap depth: 11.5 Crank: full overlay Plate height: H=0 Plate type: for euroscrews Spring: yes Weight: 60 gr± 2	11.5	full overlay	H=0	for euroscrews	yes	60 gr± 2	Inquiry In Inquirylist In Inquirylist
KSLA-001-60-48A0-EUW full/48/H0, 60+/ 2g/ screws	-	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist
KSLA-001-60-48A2 full/48/H2, 60+/ 2g Cap depth: 11.5 Crank: full overlay Plate height: H=2 Plate type: for chipboard screws Spring: yes Weight: 59 gr-61	11.5	full overlay	H=2	for chipboard screws	yes	59 gr-61	Inquiry In Inquirylist In Inquirylist
KSLA-001-60-48A2-EU full/48/H2, 60+/ 2g Cap depth: 11.5 Crank: full overlay Plate height: H=2 Plate type: for euroscrews Spring: yes Weight: 60 gr± 2	11.5	full overlay	H=2	for euroscrews	yes	60 gr± 2	Inquiry In Inquirylist In Inquirylist
KSLA-001-60-48A2-4 full/48/H2, 60+/ 2g/4holes Cap depth: 11.5 Crank: full overlay Plate height: H=2 Plate type: for chipboard screws, 4 holesSpring Weight: 60 gr± 2	11.5	full overlay	H=2	for chipboard screws, 4 holesSpring	-	60 gr± 2	Inquiry In Inquirylist In Inquirylist
KSLA-001-60-48B0 half/48/H0, 60+/ 2g	-	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist
KSLA-001-60-48B2 half/48/H2, 60+/ 2g Cap depth: 11.5 Crank: half overlay Plate height: H=2 Plate type: for chipboard screws Spring: yes Weight: 60 gr± 2	11.5	half overlay	H=2	for chipboard screws	yes	60 gr± 2	Inquiry In Inquirylist In Inquirylist
KSLA-001-60-48B2-4 half/48/H2, 60+/ 2g/4holes	-	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist
KSLA-001-60-48B2-EU half/48/H2, 60+/ 2g Cap depth: 11.5 Crank: half overlay Plate height: H=2 Plate type: for euroscrews Spring: yes Weight: 60 gr± 2	11.5	half overlay	H=2	for euroscrews	yes	60 gr± 2	Inquiry In Inquirylist In Inquirylist
KSLA-001-60-48C0 insert/48/H0, 60+/ 2	-	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist
KSLA-001-60-48C2 insert/48/H2, 60+/ 2 Cap depth: 11.5 Crank: inset Plate height: H=2 Plate type: for chipboard screws Spring: yes Weight: 60 gr± 2	11.5	inset	H=2	for chipboard screws	yes	60 gr± 2	Inquiry In Inquirylist In Inquirylist
KSLA-001-60-48C2-EU insert/48/H2, 60+/ 2 Cap depth: 11.5 Crank: inset Plate height: H=2 Plate type: for euroscrews Spring: yes Weight: 60 gr± 2	11.5	inset	H=2	for euroscrews	yes	60 gr± 2	Inquiry In Inquirylist In Inquirylist
KSLA-001-58-48A2-4 full/48/H2, 58+/ 2g/4holes Cap depth: 11.5 Crank: full overlay Plate height: H=2 Plate type: for chipboard screws, 4 holesSpring Weight: 58 gr± 2	11.5	full overlay	H=2	for chipboard screws, 4 holesSpring	-	58 gr± 2	Inquiry In Inquirylist In Inquirylist
KSLA-001-56-48C0-EU insert/48/H0, 55+/ 2g	-	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist
KSLA-001-58-48A0-EU full/48/H0, 58+/ 2g	-	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist
KSLA-001-52-45C0 insert/45/H0, 52+/ 2g	-	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist
KSLA-001-50-48A2-4 full /48/H2, 50+/ 2g,4 holes	-	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist
KSLA-001-50-48A2-EU full /48/H2, 50+/ 2g,+Euscrew	-	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist
KSLA-001-50-48B0 half/48/H0, 50+/ 2g	-	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist
KSLA-001-50-48B2 half/48/H2, 50+/ 2g Cap depth: 11.5 Crank: half overlay Plate height: H=2 Plate type: for chipboard screws Spring: yes Weight: 50 gr± 2	11.5	half overlay	H=2	for chipboard screws	yes	50 gr± 2	Inquiry In Inquirylist In Inquirylist
KSLA-001-50-48C0 insert/48/H0, 50+/ 2 Cap depth: 11.5	11.5	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist
KSLA-001-50-48C2 insert/48/H2, 50+/ 2 Cap depth: 11.5 Crank: inset Plate height: H=2 Plate type: for chipboard screws Spring: yes Weight: 50 gr± 2	11.5	inset	H=2	for chipboard screws	yes	50 gr± 2	Inquiry In Inquirylist In Inquirylist
KSLA-001-52-45A0 full /45/H0, 52+/ 2g	-	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist
KSLA-001-52-48A0 full/48/H0, 52+/ 2g Cap depth: 11.5 Crank: full overlay Plate height: H=0 Plate type: for chipboard screws Spring: yes Weight: 52 gr± 2	11.5	full overlay	H=0	for chipboard screws	yes	52 gr± 2	Inquiry In Inquirylist In Inquirylist
KSLA-001-50-48A0 full /48/H0, 50+/ 2g Cap depth: 11.5 Crank: full overlay Plate height: H=0 Plate type: for chipboard screws Spring: yes Weight: 50 gr± 2	11.5	full overlay	H=0	for chipboard screws	yes	50 gr± 2	Inquiry In Inquirylist In Inquirylist
KSLA-001-52-48A2-4 full/48/H2, 52+/ 2g,4 holes Cap depth: 11.5 Crank: full overlay Plate height: H=2 Plate type: for chipboard screws, 4 holesSpring Weight: 52 gr± 2	11.5	full overlay	H=2	for chipboard screws, 4 holesSpring	-	52 gr± 2	Inquiry In Inquirylist In Inquirylist
KSLA-001-52-48B2 half/48/H2, 52+/ 2g Cap depth: 11.5 Crank: half overlay Plate height: H=2 Plate type: for chipboard screws Spring: yes Weight: 52 gr± 2	11.5	half overlay	H=2	for chipboard screws	yes	52 gr± 2	Inquiry In Inquirylist In Inquirylist
KSLA-001-52-48B2-4 half/48/H2, 52+/ 2g, 4holes Cap depth: 11.5	11.5	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist
KSLA-001-52-48C0-EUW insert/48/H0, 52+/ 2g	-	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist
KSLA-001-52-48C2 insert/48/H2, 52+/ 2g Cap depth: 11.5 Crank: inset Plate height: H=2 Plate type: for chipboard screws Spring: yes Weight: 52 gr± 2	11.5	inset	H=2	for chipboard screws	yes	52 gr± 2	Inquiry In Inquirylist In Inquirylist
KSLA-001-52-48C2-4 insert/48/H2, 52+/ 2g,4 holes Cap depth: 11.5	11.5	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist
KSLA-001-52-48C2-EU insert/48/H2, 52+/ 2g Cap depth: 11.5	11.5	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist
KSLA-001-52-48C2-EUW insert/48/H2, 52+/ 2g	-	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist
KSLA-001-60-48С2-4 insert/48/H2, 60+/ 2g/4holes	-	-	-	-	-	-	Inquiry In Inquirylist In Inquirylist

KSLA-001 Furniture hinge, slide-on

KSLA-001-52-48A2

KSLA-001-50-48A2

KSLA-001-58-48A2

KSLA-001-48-48A2

KSLA-001-58-48A2-EU

KSLA-001-58-48B2-EU

KSLA-001-58-48C2-EU

KSLA-001-60-48A0

KSLA-001-60-48A0-EU

KSLA-001-60-48A0-EUW

KSLA-001-60-48A2

KSLA-001-60-48A2-EU

KSLA-001-60-48A2-4

KSLA-001-60-48B0

KSLA-001-60-48B2

KSLA-001-60-48B2-4

KSLA-001-60-48B2-EU

KSLA-001-60-48C0

KSLA-001-60-48C2

KSLA-001-60-48C2-EU

KSLA-001-58-48A2-4

KSLA-001-56-48C0-EU

KSLA-001-58-48A0-EU

KSLA-001-52-45C0

KSLA-001-50-48A2-4

KSLA-001-50-48A2-EU

KSLA-001-50-48B0

KSLA-001-50-48B2

KSLA-001-50-48C0

KSLA-001-50-48C2

KSLA-001-52-45A0

KSLA-001-52-48A0

KSLA-001-50-48A0

KSLA-001-52-48A2-4

KSLA-001-52-48B2

KSLA-001-52-48B2-4

KSLA-001-52-48C0-EUW

KSLA-001-52-48C2

KSLA-001-52-48C2-4

KSLA-001-52-48C2-EU

KSLA-001-52-48C2-EUW

KSLA-001-60-48С2-4
