KSLJ-191-46L=46 | - | - | - | - | - | |
KSLJ-191-64L=64mm, 24+16+24
Board: 16
Cam distance (A): 24
Diameter (D): 6.8
Dowel length (L): 64
Neck: 3.3
| 16 | 24 | 6.8 | 64 | 3.3
| |
KSLJ-191-68L=68mm, 34+0+34
Board: 16
Cam distance (A): 34
Diameter (D): 6.8
Dowel length (L): 68
Neck: 3.3
| 16 | 34 | 6.8 | 68 | 3.3
| |
KSLJ-191-74L=74mm, 34+16+24
Board: 16
Cam distance (A): 34/24
Diameter (D): 6.8
Dowel length (L): 74
Neck: 3.3
| 16 | 34/24 | 6.8 | 74 | 3.3
| |

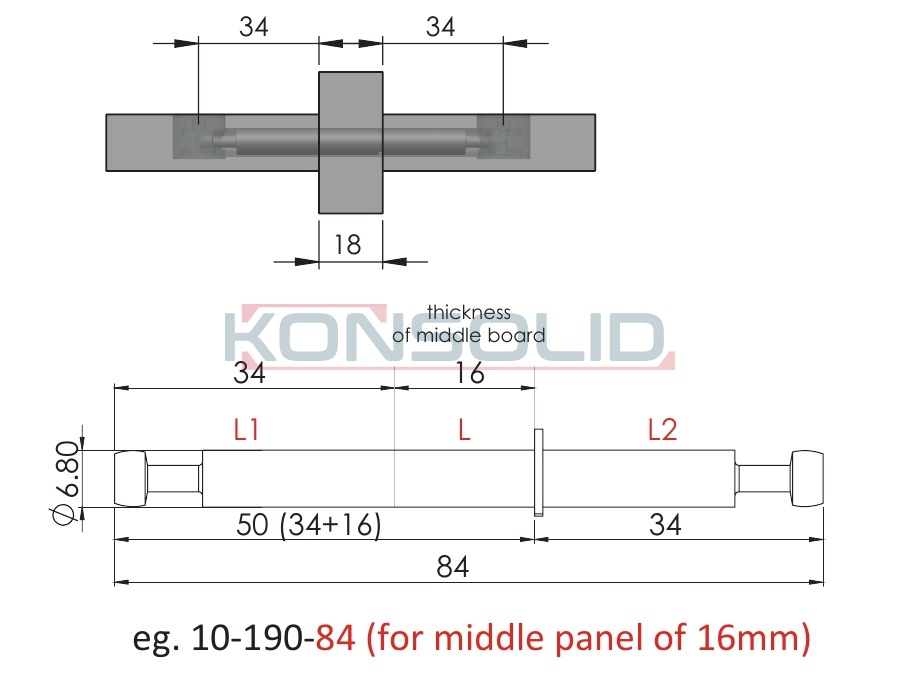

KSLJ-191-84L=84mm, 34+16+34
Board: 16
Cam distance (A): 34
Diameter (D): 6.8
Dowel length (L): 84
Neck: 3.3
| 16 | 34 | 6.8 | 84 | 3.3
| |
KSLJ-191-86L=86mm, 34+16+34 | - | - | - | - | - | |
